AUGLAS ES Elastic silicone

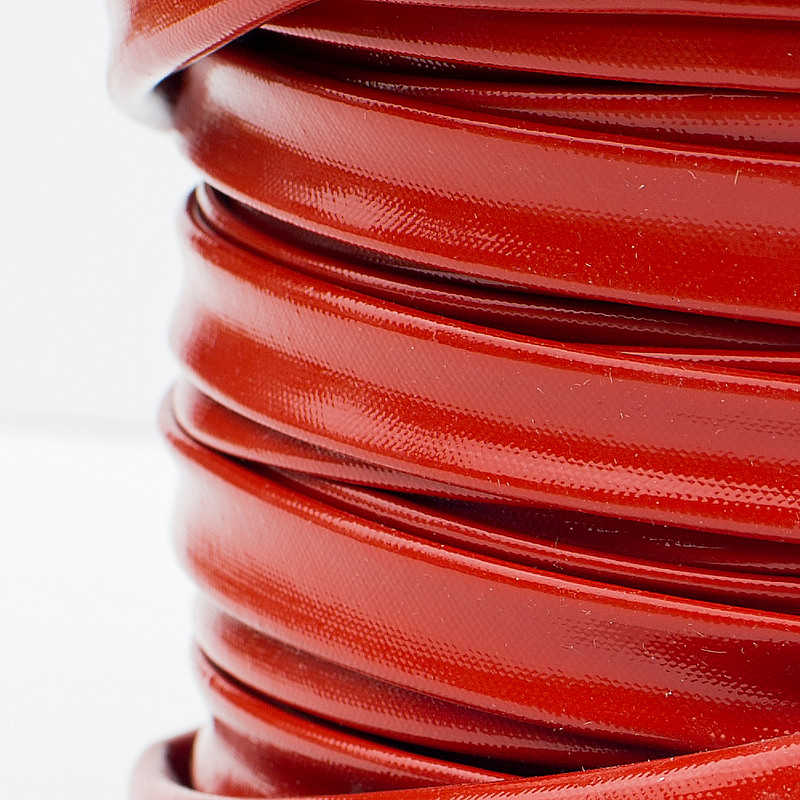

Glass fibre insulation sleeve

These glass fibre insulation sleeves are manufactured in accordance with DIN 40620 and coated with durable silicone latex, which is extremely resistant to abrasion and high temperatures.

Standard colour: russet. Other colours available on request.

UL listed also available. Please contact us.

AUGLAS ES Properties

-50 to +250°C for russet
Breakdown voltage 3 kV
Contact resistance 50 - 200 mega ohms x m-¹
Resistant to UV
Resistant to ozone
Resistant to chemicals
Minimal water absorption
Very flexible
Waterproof

Available dimensions AUGLAS ES

Order size, type	Inner-Ø in mm, approx.	Wall in mm, approx.	Ring length in m
AUGLAS ES-1,0	1,00 ± 0,20	0,50 ± 0,10	300
AUGLAS ES-2,0	2,00 ± 0,20	0,50 ± 0,10	400
AUGLAS ES-3,0	3,00 ± 0,20	0,50 ± 0,10	500
AUGLAS ES-4,0	4,00 ± 0,20	0,50 ± 0,10	400
AUGLAS ES-5,0	5,00 ± 0,30	0,60 ± 0,20	200
AUGLAS ES-6,0	6,00 ± 0,30	060 ± 0,20	300
AUGLAS ES-7,0	7,00 ± 0,30	0,60 ± 0,20	250
AUGLAS ES-8,0	8,00 ± 0,30	0,60 ± 0,20	250
AUGLAS ES-9,0	9,00 ± 0,30	0,60 ± 0,20	250
AUGLAS ES-10,0	10,00 ± 0,40	0,80 ± 0,20	200
AUGLAS ES-12,0	12,00 ± 0,40	0,80 ± 0,20	150
AUGLAS ES-14,0	14,00 ± 0,40	1,00 ± 0,20	100
AUGLAS ES-16,0	16,00 ± 0,50	1,00 ± 0,20	100
AUGLAS ES-18,0	18,00 ± 0,50	1,20 ± 0,20	75
AUGLAS ES-20,0	20,00 ± 0,80	1,30 ± 0,30	50
